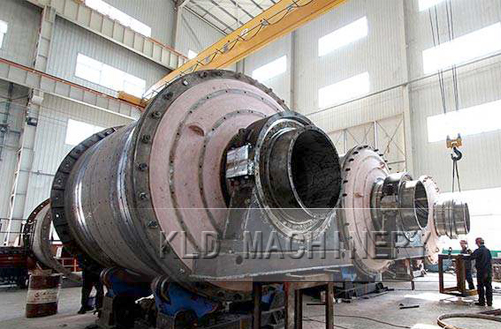

Aluminium grinding ball mill

Aluminium grinding ball mill

Cylinder speed:18-38r/min
Weight:1.5-65t
Feeding size:≤25mm
Motor power:18.5-800kw
Aluminium powder, commonly known as silver powder, can be used to identify fingerprints, also can be used to make the fireworks .

Introduction

Aluminium powder, commonly known as silver powder, can be used to identify fingerprints, also can be used to make the fireworks .Aluminum is widely used and has many varieties, it is one of the categories of metallic pigment. Former production method of aluminium powder is pounding –impact, now widely used method is known as ball mill dry process grinding.

Advantages:Inquiry > >

  1.Main bearing adopts large diameter double biserial roller bearing, with easy maintenance and high efficiency.
  2.Discharging end adopts cone design, thus strengthen the mill,forces grading of steel balls. More closer to the discharging end, steel balls’ diameter is more smaller, grinding particles are more smaller
  3.Adopts overall steel chassis,with high precision and easy installation
  4.Combined feeder is cancelled, adopts drum feeder, without impact force, thus machine runs smoothly, reduce maintenance frequency, improves production efficiency

Technical Parameters:Inquiry > >

Type Cylinder speed
(r/min)
Weight
(t)
Feeding size
(mm)
Particle size
(mm)
Capacity
(t/h)
Motor power
(kw)
Weight
(t)
Ф900×1800 36~38 1.5 ≤20 0.075-0.89 0.65-2 18.5 4.6
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 5.6
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 15.6
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 21
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 24.7
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 28
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 32
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 34
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 36
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 34
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 42
Ф2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280 50
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 48.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 52.8
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 54
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 56
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 54
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 65
Ф2700×4000 20.7 40 ≤25 0.074-0.4 12-80 400 94
Ф2700×4500 20.7 48 ≤25 0.074-0.4 12-90 430 102
Ф3200×4500 18 65 ≤25 0.074-0.4 According to
technological
conditions
800 137
