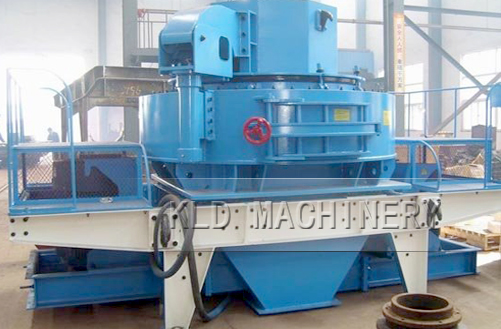

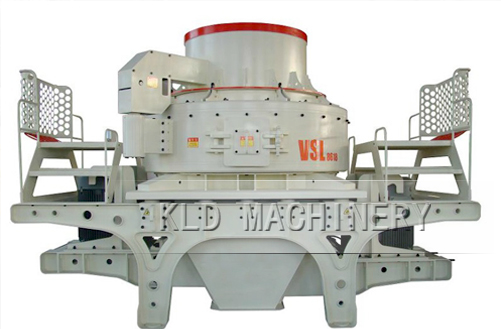

VSI sand making machine

VSI sand making machine

Production capacity:65-520t/h
Feeding size:<50mm
VSI sand making machine can process the following materials such as iron ore, copper ore, gold and silver ore, zinc, manganese, limestone, granite, basalt,
cobble, coal, quartz and so on, which is widely used in the fields including rocks, abrasive, refractory, cement clinker, quartz, iron ore and concrete aggregate, building materials and so on.

Introduction

It’s the high—efficiency sand making equipment with advanced world levels in China. sand making machine can be used in Building aggregate, highway, asphalt
concrete and cement aggregate production. As well as stone reshaping production in water conservancy and hydropower engineering field,highway, railway
, bridge, passenger line, airport runway, municipal engineering and high-rise buildings



Working principle

materials fall into the crusher and are divided into two parts. One part goes into the high-speed-running impeller of the machine,
 and the other part goes around the impeller. The two parts materials bump and crush fast during the effect of centrifugal force.
Then the materials run like swirl, bump and rub to each other again and again.The finished products go out from the bottom of the
machine, and users can get the requested products size after screening by vibrating screen


Advantages:Inquiry > >

1. Large capacity and high yield, Compared with the same power equipment, its production increase 30 percent, and is relatively stable.
2. Low consumption of vulnerable parts.
3. Product grain shape excellent.
4. Hydraulic device, easy to maintain.
5. Automatic detection, safe and reliable.


Technical Parameters:Inquiry > >

Model Capacity (t/h) Max Feed
Size (mm)
Rotation speed
(r/min)
Power for
double motor
(kW)
Overall
Dimension
L×W×H (mm)
Weight
(t)
Center and
Ring feeding
Center
feeding
Soft
material
Hard
material
VSI7611 120-190 65-95 35 30 1700-1900 55×2 3700×2150×2100 11.8
VSI8518 200-260 100-130 40 35 1520-1700 90×2 4140×2280×2425 14.5
VSI9526 300-380 150-190 45 40 1360-1500 132×2 4560×2447×2778 17.8
VSI1140 450-520 225-260 50 45 1180-1310 200×2 5000×2700×3300 25.6
