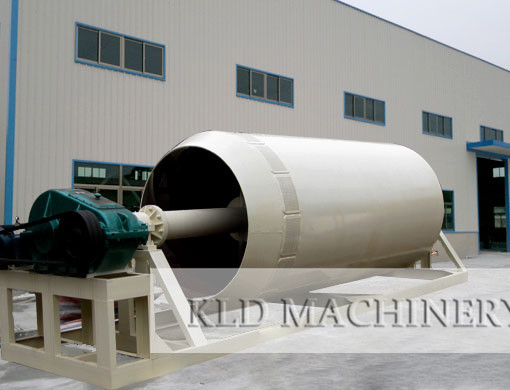

Cylinder Stone Washer_Henan KaiLide Machinery Equipment Co., Ltd

Introduction

It is widely applied to wash various lump ore especially those hard to wash. This washer can be divided into two kinds: cylindrical ones and the other cylindrical ones with grate bars. The latter ones can separate material to two size grade products: +40mm and -40mm ones. The -40mm material can be sent to the double spiral chute ore washing machine for a further washing which can divide into two size grade products also: +2mm and -2mm ones. This group of machines is the most efficient ones in dealing with hard washing ores.

Working principle

Four tugs hold the body of washer, motor drives reducer, the washer is rotating at a low speed in the function of the gears. The material with mud and stone powder is send through the inlet to the rotating washer. Inside the washer, there are wear-resisting rubber linings with a certain angle. Material is threw up and down many times in the washer from the inlet to the outlet and washed by the forward or backward flushing water. Finally, clean material is sent out after screened and dehydrated while waste water is flowed out through the outlet or perforated plate on the feeder.

Advantages：Inquiry > >

　　1.This product is used for various big ore, especially for expressway, railway, bridge, tunnel and etc.
　　2.Compared with domestic products. new type drum washer has characteristic of big capacity, low consumption and easy-movable.
　　3.New type drum washer is suited for fine and coarse material.
　　4.Simple structure, easy maintenance, big capacity, low consumption and high clearance.
　　5.New type drum washer adopts sealing structure, rotating device and adjustable sink, which can make sure that the product is high efficiency, durable has good dehydration.

Technical Parameters:Inquiry > >

Model	1542	1842	2042
Diameter of cylinder (mm)	1500	1800	2000
Cylinder length (mm)	4200	4200	4200
Screw speed (r/min)	10-13	10-12	9-11
Max.feeding size (mm)	60	80	110
Capacity (t/h)	40-60	60-80	100-150
Motor power (kw)	15	18.5	22
Weight (t)	6.8	11.8	18.6
Dimension (LWxH) ( mm)	6500x1750x1800	7500x2100x2600	8800x2200x2900
