Circular vibrating screen_Henan KaiLide Machinery Equipment Co., Ltd

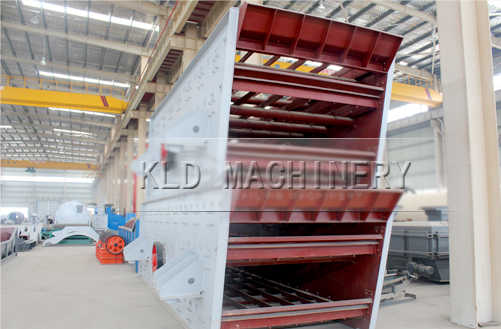

Circular vibrating screen

Production capacity:35-810t/h
Feeding size:200-400mm
Power:11-45kw
The vibrating screen moves in a circular motion with multiple layers and high efficiency. The vibrating screen is designed with the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing. It is manufactured with long material screen rifling and many screen specifications.

Get Price Send Message

Introduction

The circular vibrating screen is a high-efficiency and new-type vibrating screen featured by circular vibration and multi-layers This type of vibrating screen is specially designed for screening material stone of a quarry, and widely used for product classification in mining, building materials, transportation, energy, chemical products industries. So, it’s a kind of ideal equipment used in the crushing and screening unit. If the screen with small boring diameter is installed, the wet and sticky material can not be screened unless the water spraying method is used.

Working principle:
he eccentric block of the exciter is driven by the motor via the triangle belt to rotate at high speed. The rotary eccentric blocks produce great centrifugal force which forces the screening box to move in circles with certain amplitude. Materials on the leaning screen surface are impacted to continuously do casting or throwing motions. Small particles pass through the screen holes of circular vibrating screen when meeting the screen surface, thus completing the separating process.

Advantages：Inquiry > >

　　1. Adopt block eccentric as exciting force, and it is very high.
　　2. Adopt high strength bolts between beam and screening box, simple structure and easy maintenance.
　　3. Adopt tire coupler and it is connected flexibility and the operation is stable.
　　4. Adopt small amplitude, high frequency, and also big inclination, which makes that the machine has high efficiency, big capacity, long lifetime, low power and noise.

Technical Parameters:Inquiry > >

Model	Screen layer	Screen area (m3)	Mesh size (mm)	Feeding size (mm)	Capacity (m3/h)	Vibrating frequency (r/min)	Double amplitude (mm)	Power (kw)	Dimension (L×W×H)	Weight (without motor) (kg)	Screen slope (°)	Screen specification (mm)
2YK1245	2	5.4	5-50	200	35-206	970	7	11	4872×2610×2520	4320	15	1200×4500
3YK1245	3	5.4	5-50	200	35-206	970	8	11	5155×2686×3754	4460	20	1200×4500
YK1535	1	5.25	5-50	200	34-200	970	8	11	4684×2971×2404	3355	15	1500×3500
3YK1535	3	5.25	5-50	400	34-200	970	8	15	4719×3106×3273	5710	20	1500×3500
YK1545	1	6.75	5-50	400	44-258	970	8	11	4806×2911×2076	3900	20	1500×4500
2YK1545	2	6.75	5-50	400	44-258	970	8	15	4650×2820×3500	4370	20	1500×4500
3YK1545	3	6.75	5-50	400	44-258	970	8	15	5650×3000×3800	5832	15	1500×4500
3YK1548	3	7.2	5-50	400	47-275	970	7	15	5011×3986×2653	6070	20	1500×4800
4YK1548	4	7.2	5-100	200	47-275	730	8	18.5	4800×2947×4045	7090	20	1500×4800
YK1848	1	8.8	5-100	400	56-330	755	11	15	4904×3020×2943	7122	20	1800×4800
2YK1848	2	8.8	5-100	400	56-330	750	11	15	4802×3009×2860	6189	20	1830×4800
3YK1848	3	8.8	5-100	400	56-330	970	7	22	5066×3986×2969	6935	20	1800×4800
2YK1854	2	9.72	5-100	400	63-586	970	7	22	5200×3400×3911	7602	20	1800×5400
3YK1854	3	9.72	5-100	400	63-586	970	7	22	6200×3326×3593	8640	15	1800×5400
4YK1854	4	9.72	5-150	200	32-310	1216	8	30	5447×3417×4266	10530	15	1800×5400
YK2154	1	11.3	5-100	400	73-683	730	8	18.5	5400×3547×2750	5269	20	2100×5400
2YK2154	2	11.3	5-100	400	73-683	730	8	22	5400×3650×3856	7851	20	2100×5400
3YK2154	3	11.3	5-100	400	73-683	730	8	22	5590×3600×3900	9857	20	2100×5400
2YK2160	2	12.6	5-100	400	81-720	970	8	30	6375×3821×3707	9240	20	2100×6000
3YK2160	3	12.6	5-100	400	81-720	970	7	30	6453×3821×4907	12757	20	2100×6000
4YK2160	4	12.6	5-100	450	66-720	740	8	45	6455×4064.5×5367	15125	20	2100×6000
2YK2280	2	17.6	5-150	400	90-750	730	8	30	8000×3835×4747	10180	20	2200×8000
YK2460	1	14.4	5-150	400	150-810	730	8	22	6050×4035×3005	6200	20	2400×6000
2YK2460	2	14.4	5-150	400	150-810	730	8	30	6050×4035×4087	8013	20	2400×6000
3YK2460	3	14.4	5-150	200	450-650	740	8	37	6050×4234×4594	10762	20	2400×6000
4YK2460	4	14.4	5-150	200	450-650	740	8	45	6050×4266×5073	12786	20	2400×6000
