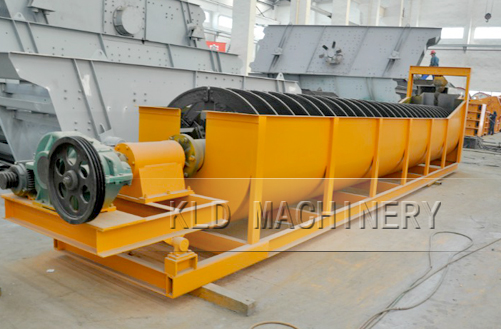

Screw Ore Washer

Spiral diameter:300-3000mm
Spiral rotation speed:3.2-30r/min
Trough length:<=3000-14130mm
Weight:<=8.5t
This machine makes use of buoyancy of water to separate sand from dust and impurity It achieves purifying, lifting and conveying of the minerals.

Get Price Send Message

Introduction

This machine makes use of buoyancy of water to separate sand from dust and impurity.It achieves purifying, lifting and conveying of the minerals through the stirring of screw slice. During lifting, the minerals are also stirred so that the coarse sands and fine sands are evenly mixed.

Advantages：Inquiry > >

　　1.Sand and mountain floor is not easy to flow, final product can be up to international standard.
　　2.Screw sand washer has no wear parts except screening net.
　　3.Long lifespan and it is not easy to break.
　　4.Reasonable structure, easy maintenance, big capacity, low consumption, high clearance. New sealing structure, blocked oil transmission device and adjustable overflow plate can make sure that the product has high efficiency, is durable and good dehydration.
　　5.Screw sand washer is used for washing, grading and hydrating in the building plant, sand stone plant, glass plant and hydropower station.

Technical Parameters:Inquiry > >

Model	Spiral diameter (mm)	Spiral rotation speed (r/min)	Trough length (mm<=)	Motor power (kw<=)		Dimensions (mm<=)			Weight (t)
Model	Spiral diameter (mm)	Spiral rotation speed (r/min)	Trough length (mm<=)	For driving	For lifting	Length	Width	Height	<=
XL-3	300	12-30	3000	1.1	---	3850	490	1140	0.7
XL-5	500	8-12.5	4500	1.1	---	5430	680	1480	1.6
XL-7	750	6-10	5500	3	---	6270	980	1820	2.7
XL-10	1000	5-8	6500	5.5	---	7590	1240	2380	4
XL-10			8400	7.5		9600	1240	2680	6
XL-12	1200	4-6	6500	7.5	2.2	8180	1570	3110	8.5
XL-12			8400	7.5	2.2	10370	1540	3920	11
2XL-12			6500	15	4.4	8230	2790	3110	15.8
2XL-12			8400	15	4.4	10370	2790	3920	17.6
XL-15	1500	4-6	8300	7.5	2.2	10410	1880	4080	12.5
XL-15			10500	7.5	2.2	12670	1820	4890	16.8
2XL-15			8300	15	4.4	10410	3390	4080	22.1
2XL-15			10500	15	4.4	12670	3370	4890	30.7
XL-20	2000	3.6-5.5	8400	11-15	3	10790	2530	4490	20.5
XL-20			12900	11-15	3	15610	2530	5340	28.5
2XL-20			8400	22-30	6	11000	4600	4490	35.5
2XL-20			12900	22-30	6	15760	4600	5640	48.7
XL-24	2400	3.67	9130	15	3	11650	2910	4970	25.7
XL-24			14130	18.5	4	16580	2930	7190	41
2XL-24			9130	30	6	12710	5430	5690	45.8
2XL-24			14130	37	8	17710	5430	8000	67.9
2XL-30	3000	3.2	12500	40	8	16020	6640	6350	73
2XL-30			14300	40	8	17091	6640	8680	84.8
