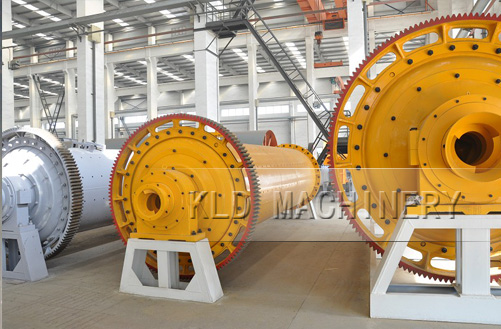

Wet process ball mill

Feeding size:≤25mm
Motor Power:18.5-800kw
Wet process ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. Main bearing adopts large diameter double biserial roller bearing, which reduces energy consumption by 30%, improves fine-particles’ percentage, and capacity increases by 15% to 20%.

Get Price Send Message

Introduction

Bearing adopts oil lubrication system, thus help bearing internal dirt cleaning and reduce the bearing attrition during normal operation. Kailide ball mill reduces replacement frequency of easily damaged parts at the most extent. Lining plates, steel balls are made of high chrome steel, which is very wear-resistiing and durable, brings a lot of advantages for ball mill’s maintenacne and working.

Advantages：Inquiry > >

　　1. Wet ball mill adopts antifriction bearing instead of sliding bearings, which reduces friction and save consumption.
　　2. Discharging part adopts cone design, which can increase the volume, compels classification of steel ball, and makes the diameter of steel ball smaller, so that it can improve the precision of grinding.
　　3. It adopts groove circular plate, which increases connecting area, strengthens the grinding function, and reduces the power.
　　4. It adopts the whole frame, convenient for civil construction and device installation.

Technical Parameters:Inquiry > >

Specification	Cylinder speed (r/min)	Weight of ball (t)	Feed size (mm)	particle size (mm)	Yield (t/h)	Motor Power (kw)	Weight (t)
Ф900×1800	36～38	1.5	≤20	0.075-0.89	0.65-2	18.5	4.6
Ф900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
Ф1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ф1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	15.6
Ф1500×4500	27	11	≤25	0.074-0.4	3-6	110	21
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ф1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	28
Ф1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	32
Ф1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	34
Ф1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	36
Ф2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	34
Ф2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	42
Ф2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	50
Ф2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	48.5
Ф2200×6500	21.7	35	≤25	0.074-0.4	14-26	380	52.8
Ф2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	54
Ф2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	56
Ф2400×3000	21	23	≤25	0.074-0.4	7-50	245	54
Ф2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	65
Ф2700×4000	20.7	40	≤25	0.074-0.4	12-80	400	94
Ф2700×4500	20.7	48	≤25	0.074-0.4	12-90	430	102
Ф3200×4500	18	65	≤25	0.074-0.4	by the process conditions	800	137
